Introduction

In the previous chapter, we used pandas to quickly visualize data contained in a data frame column. This is very convenient, but limited to a few commonly used visualization types like line charts, bar chars, scatter plots, and histograms (see the official documentation for more details).

Matplotlib is one of the most important visualization packages for Python. It can create almost any type of visualization, with tons of customization options to make the plot look just the way you want. In fact, plots created with pandas use Matplotlib under the hood.

Matplotlib

Matplotlib is particularly well-suited for creating a wide variety of plots, especially for scientific purposes. The data to be visualized is typically stored in NumPy arrays.

Note

The official Matplotlib website offers several tutorials. In particular, the Quick Start Guide is a good complement to the material covered in this chapter.

As always, we start with the necessary imports:

import numpy as np
import matplotlib.pyplot as plt

Note that we import matplotlib.pyplot as plt and not matplotlib directly, because the vast majority of functions for creating plots are located in the matplotlib.pyplot subpackage.

Important

Plots created with Matplotlib are not displayed by default. To display a plot in a separate window, you must explicitly run the following command:

plt.show()

However, this window blocks the Python interpreter, i.e., you cannot enter any further commands as long as the graphics window is open. To avoid this behavior, you can enter the following command in the interactive Python interpreter directly after importing:

plt.ion()

This command ensures that plots are displayed immediately after they are created (“ion” stands for “interactive on”). Note that scripts should not use this command, as it can lead to unexpected behavior.

Creating plots

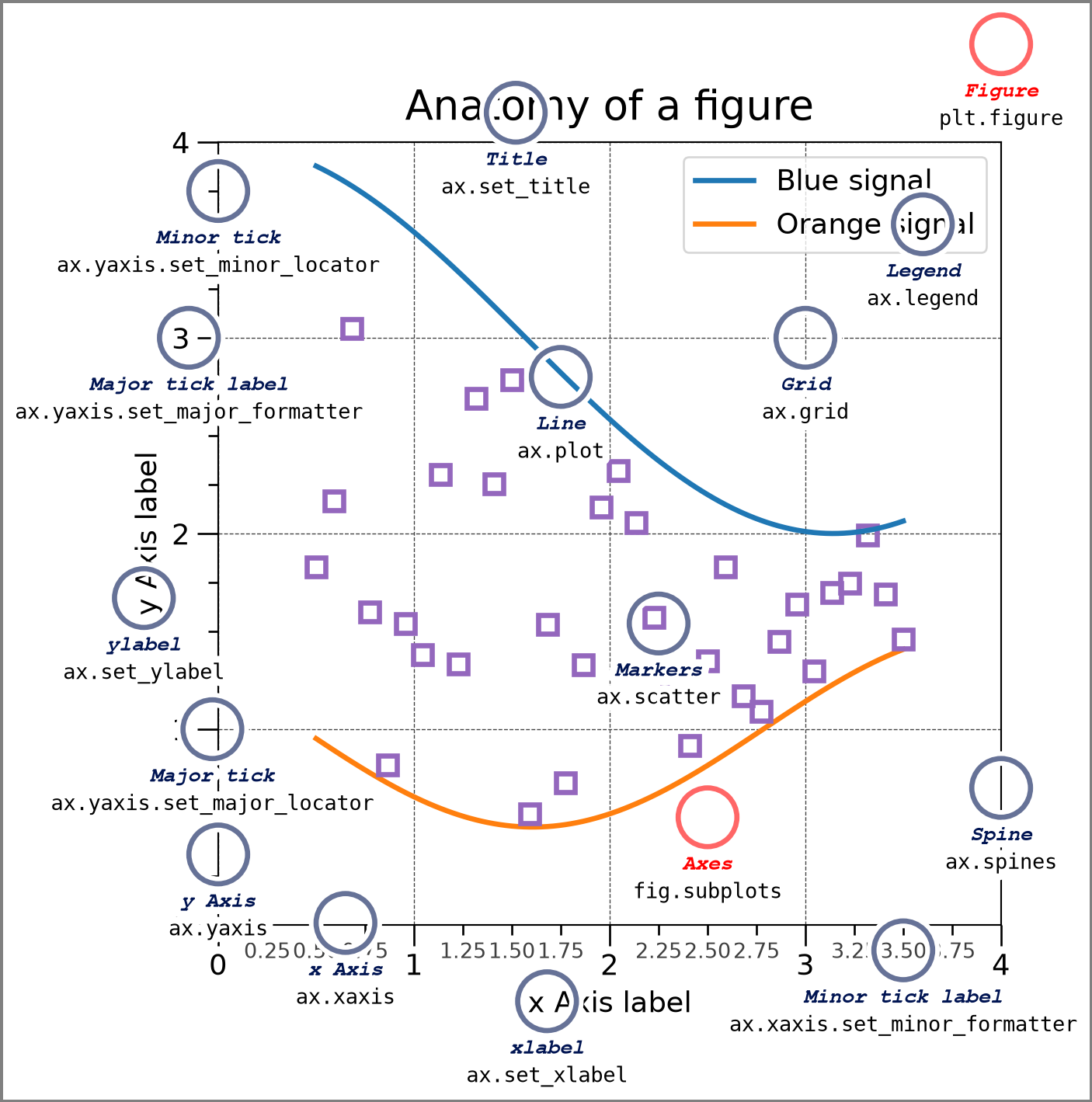

Before we start creating plots with Matplotlib, it is helpful to familiarize ourselves with some basic concepts and the structure of a plot, as illustrated in the following figure (modified from here):

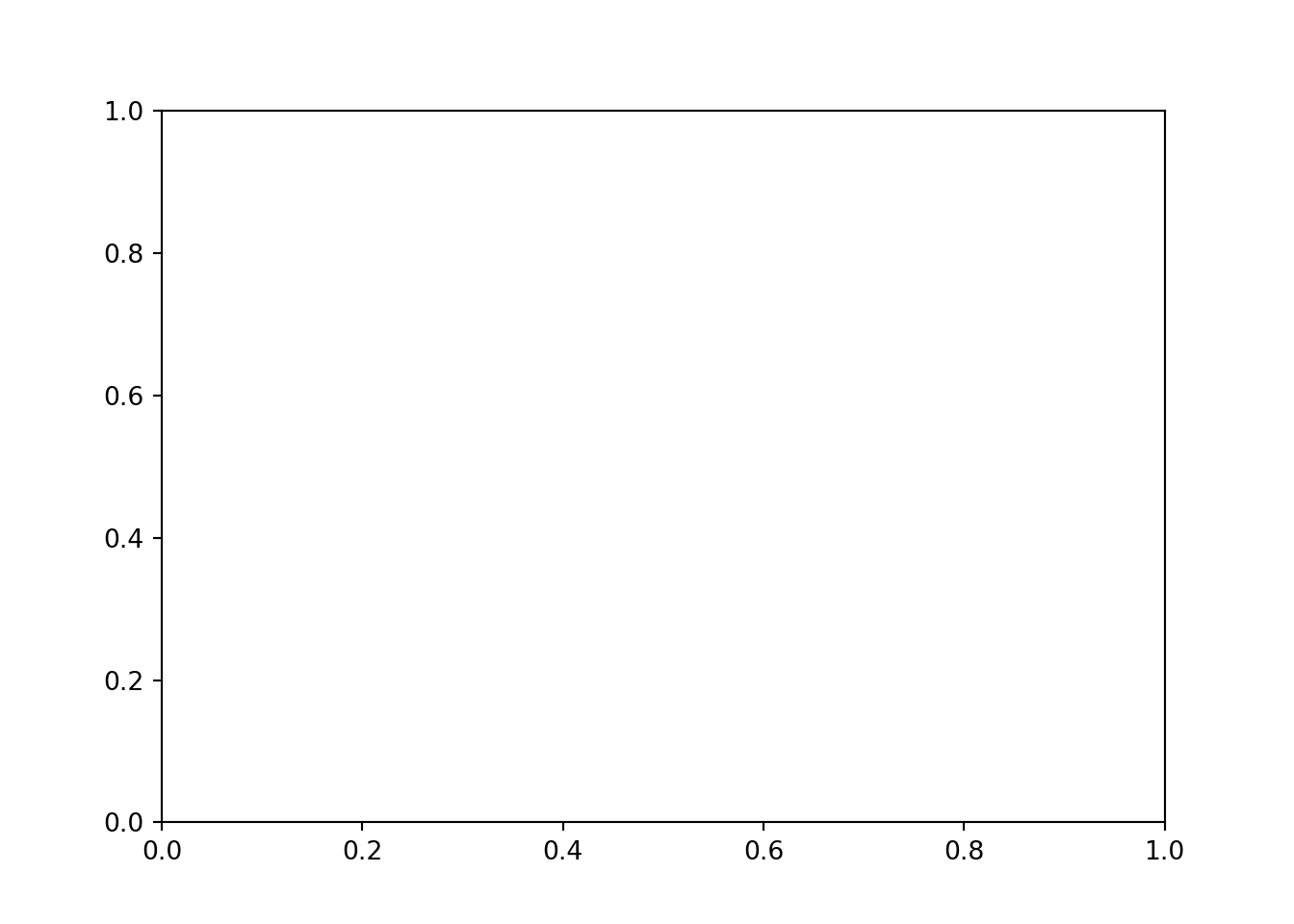

This figure shows the most important components of a Matplotlib plot, but we only need two concepts to get started: Figure and Axes (highlighted in red). A Figure corresponds to the entire figure area, which can contain one or more plots (so-called Axes).

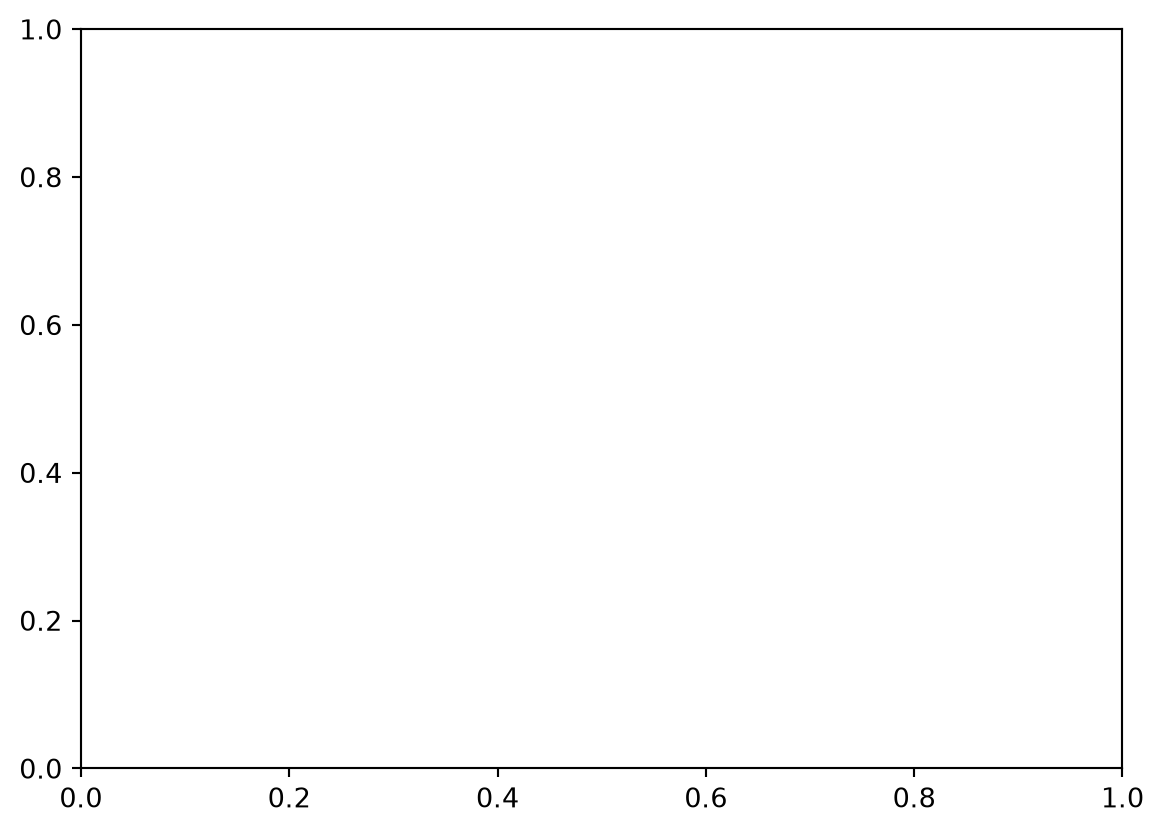

The plt.subplots function creates an empty Figure containing one empty Axes object by default:

fig, ax = plt.subplots()

The function returns both the Figure and the Axes objects (we call them fig and ax). We can now call methods of the Axes object (which we named ax) to create the desired plot (more on this in the next section).

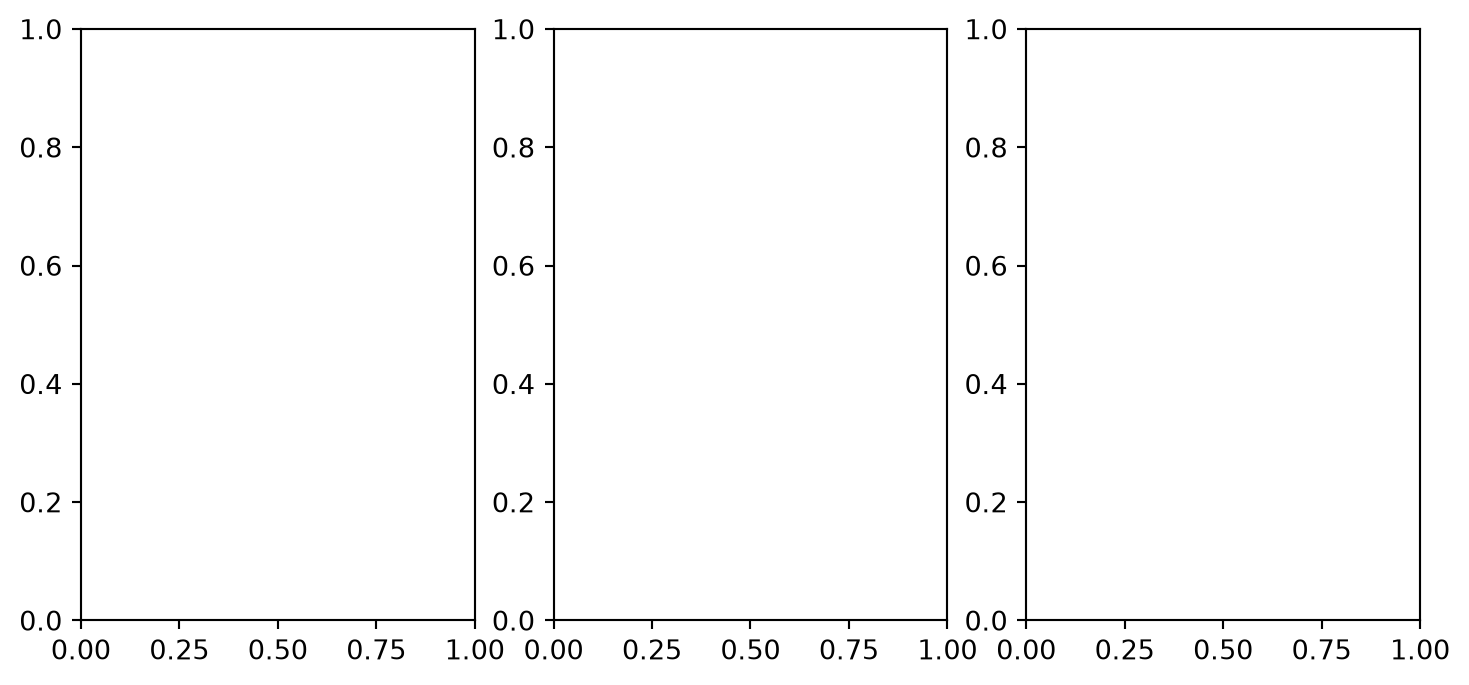

If we want to combine multiple plots in a single figure, we can again use plt.subplots to create a Figure with the desired number of Axes. To do this, we use the first and second arguments, which correspond to the number of rows and columns of the plots, respectively:

fig, axes = plt.subplots(1, 3)  # 1 row, 3 columns

This example creates a Figure containing three Axes arranged in one row and three columns. We named this collection of three Axes objects axes, which is a one-dimensional NumPy array. Therefore, we can access the individual elements using axes[0], axes[1], and axes[2] to create the desired plots.

We can also generate a two-dimensional arrangements consisting of multiple rows and columns. In this case, the returned axes are available in a two-dimensional NumPy array. Therefore, we need to extract the individual Axes objects with a two-dimensional index (i.e., row and column). For example, axes[0, 2] would be the Axes object in row 0 (i.e., the first row) and column 2 (i.e., the third column).

To avoid any overlap in a Figure with multiple Axes objects, it is recommended to run the following line after all plots have been created:

fig.set_tight_layout(True)

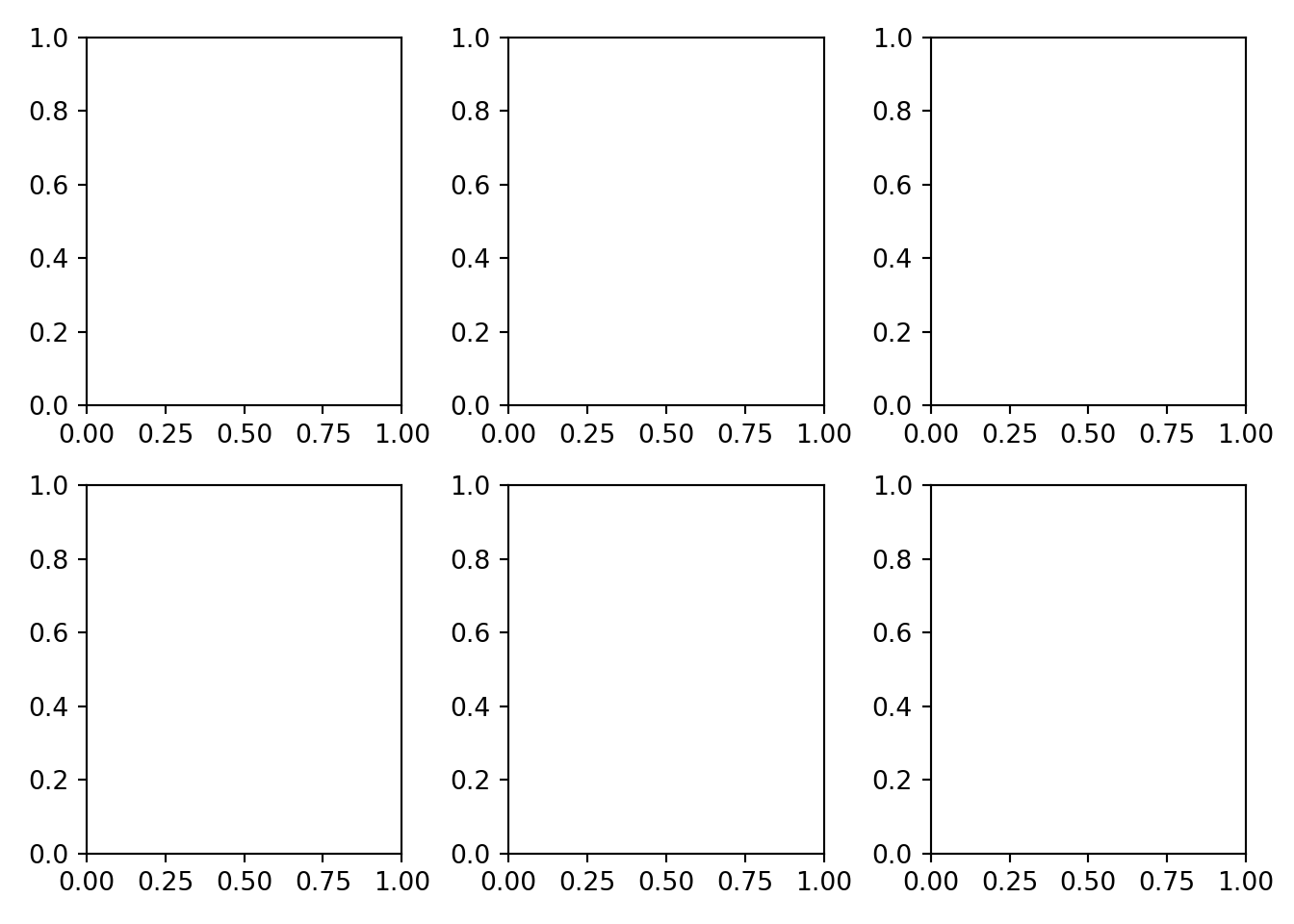

This will adjust the spacing between the Axes objects so that no text or other elements are cut off or overlap. Let’s look at an example. First, we create a figure with two rows and three columns:

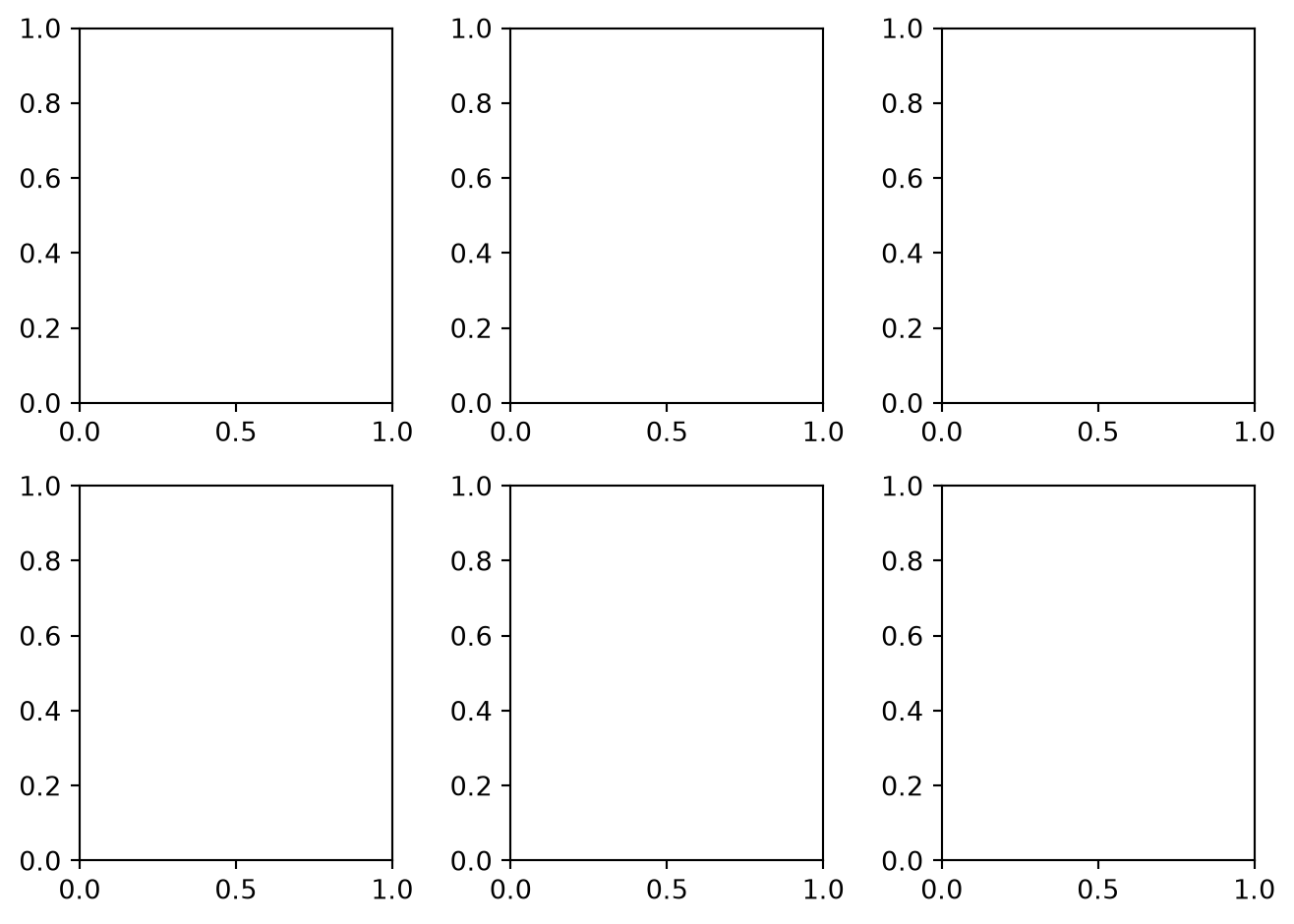

fig, axes = plt.subplots(2, 3)

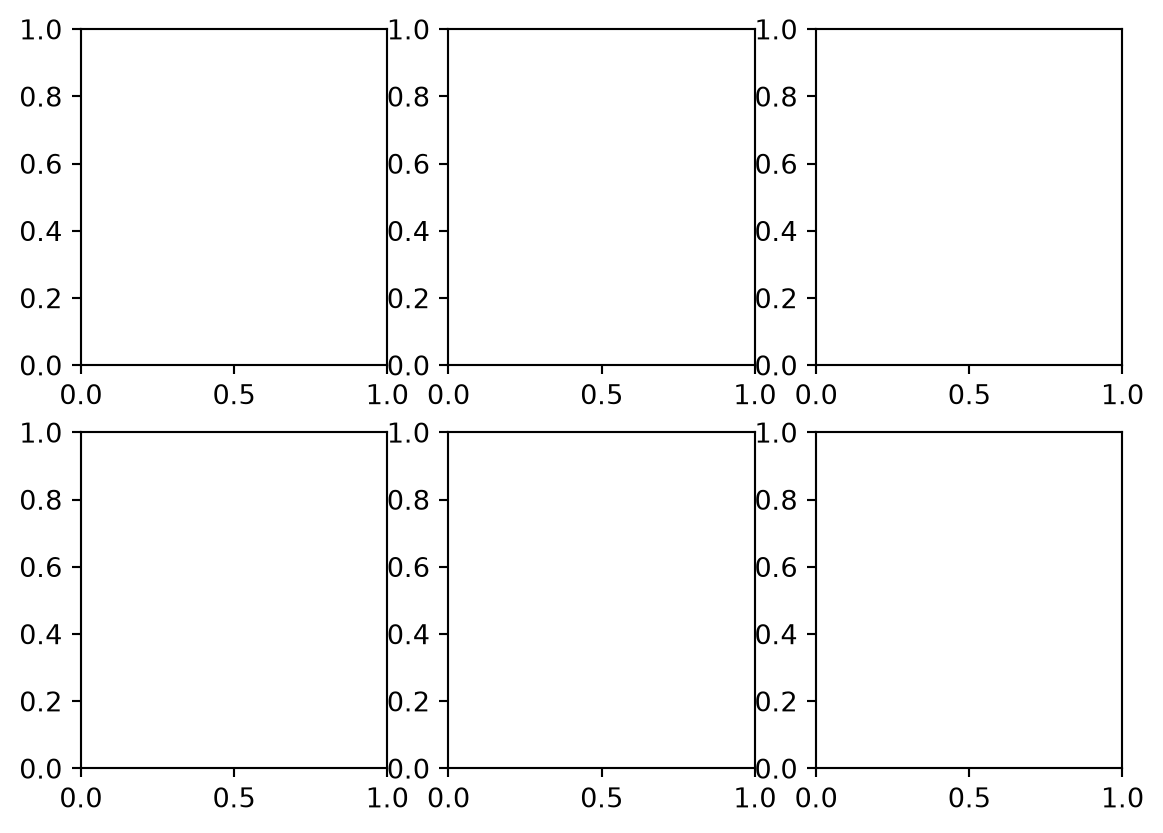

And this is the figure using the optimized layout:

fig, axes = plt.subplots(2, 3)
fig.set_tight_layout(True)

Line plots

Matplotlib supports many different plot types. First, let’s look at line plots, which are useful for displaying time series data. We use the following example data x and y:

x = np.linspace(0, 10, 100)
y = np.sin(x)

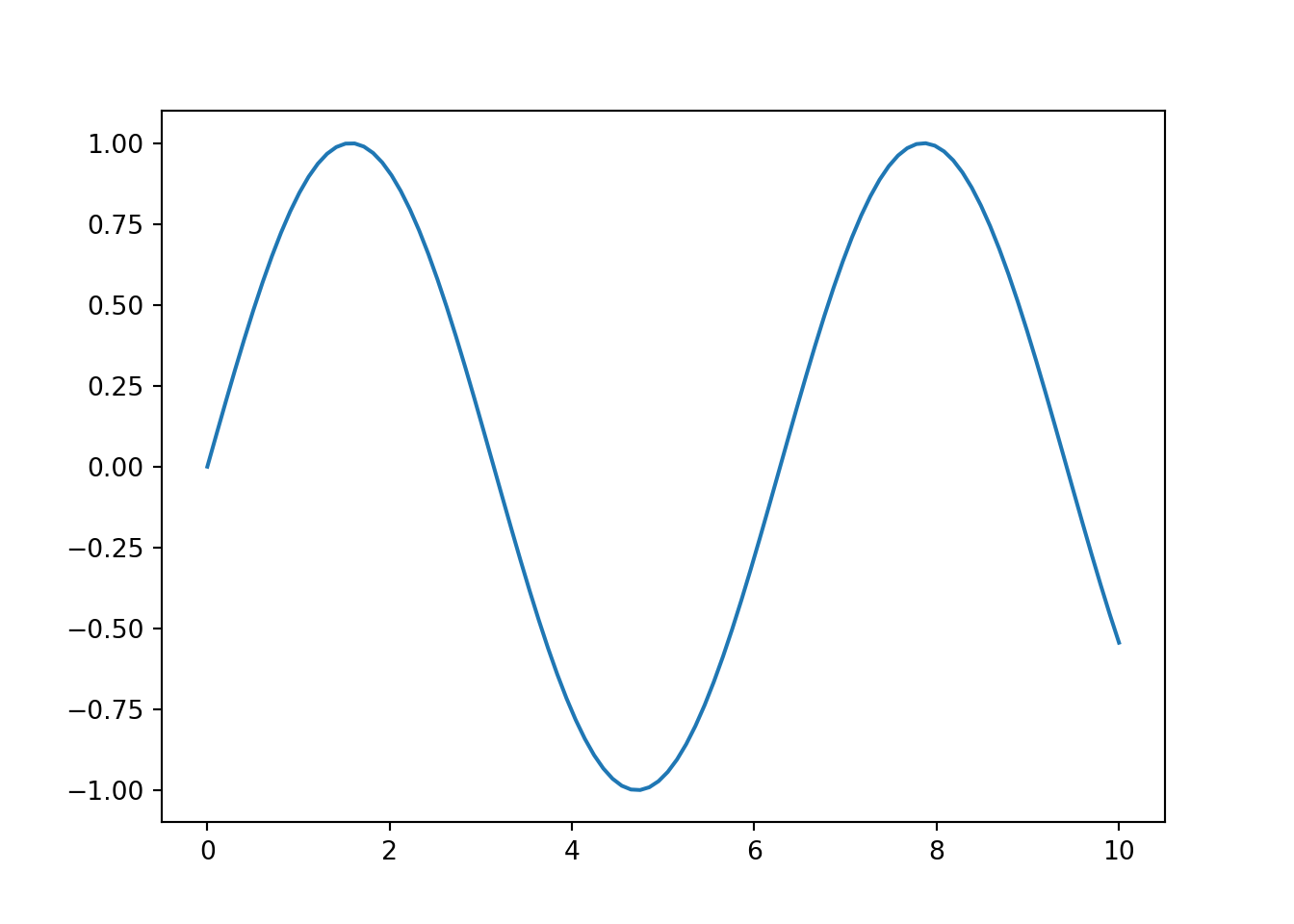

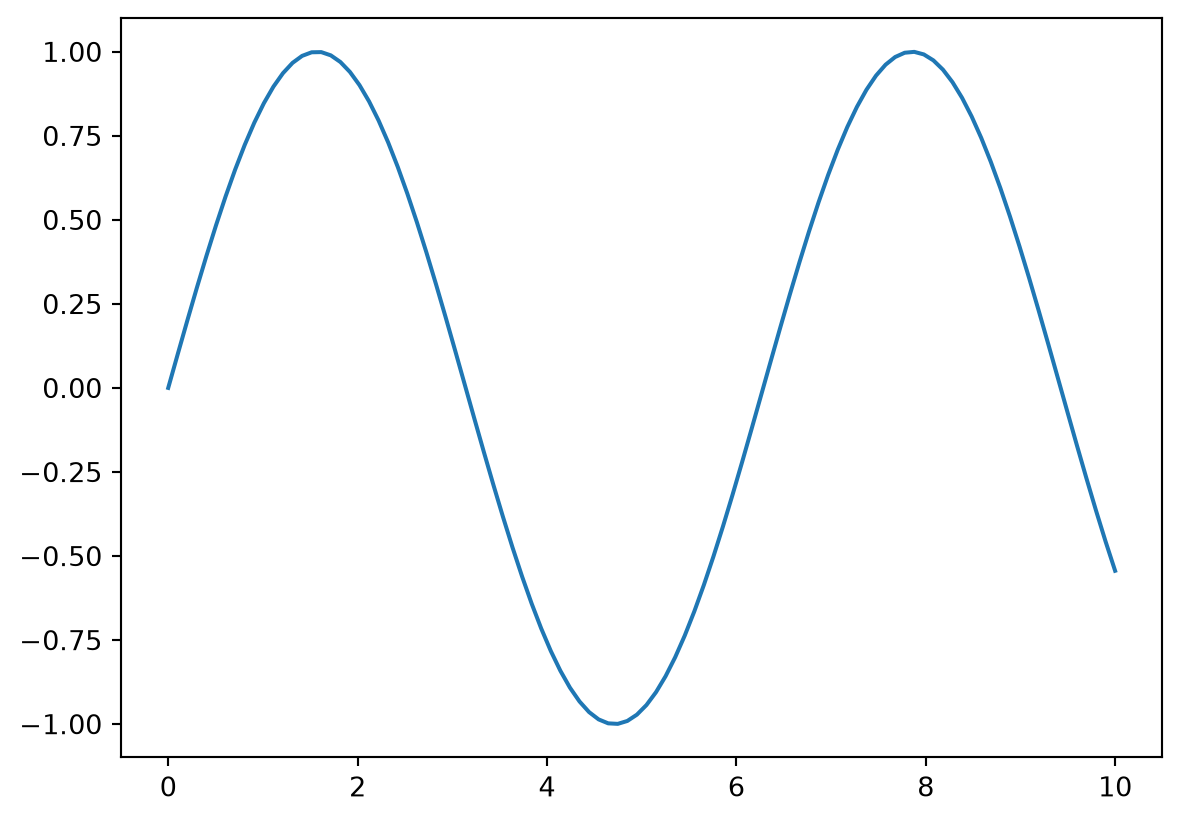

To create a line plot, we call the plot method and pass the data for the x- and y-axes:

fig, ax = plt.subplots()
ax.plot(x, y)

Scatter plots

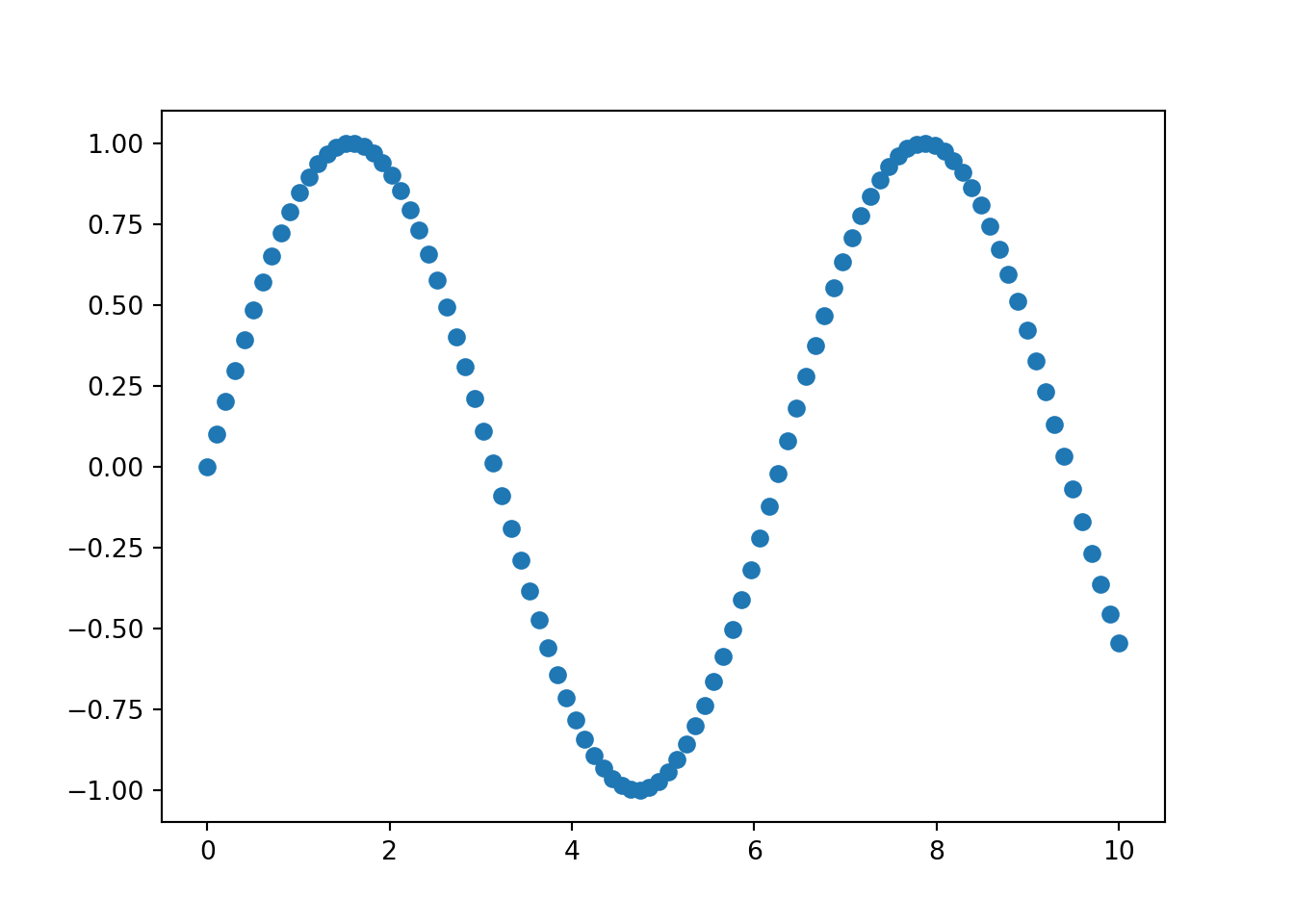

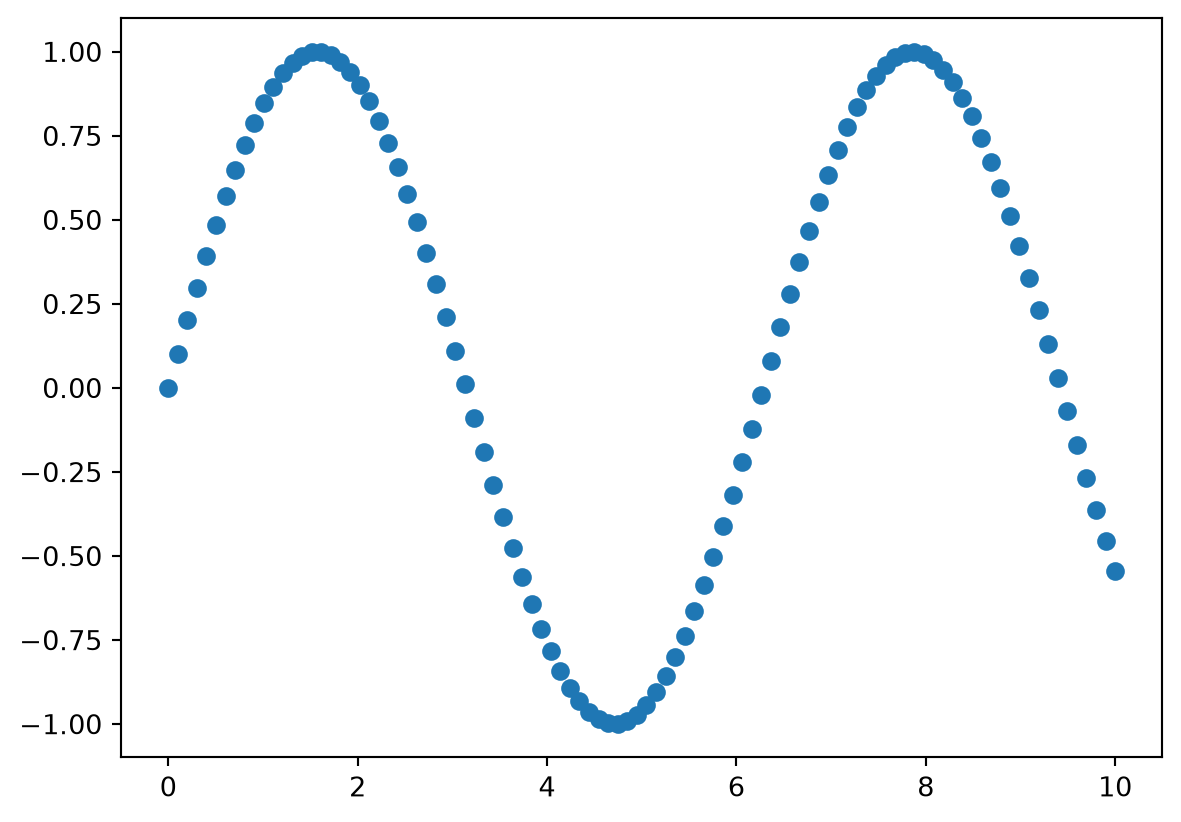

To create a scatter plot, we use the scatter method, which provides sensible default values for this type of plot:

fig, ax = plt.subplots()
ax.scatter(x, y)

Bar charts and stem plots

For a bar chart, we need the heights of the individual bars as well as the positions of the bars on the x-axis:

x = np.arange(8)
y = [17, 5, 23, 33, 12, 21, 27, 18]

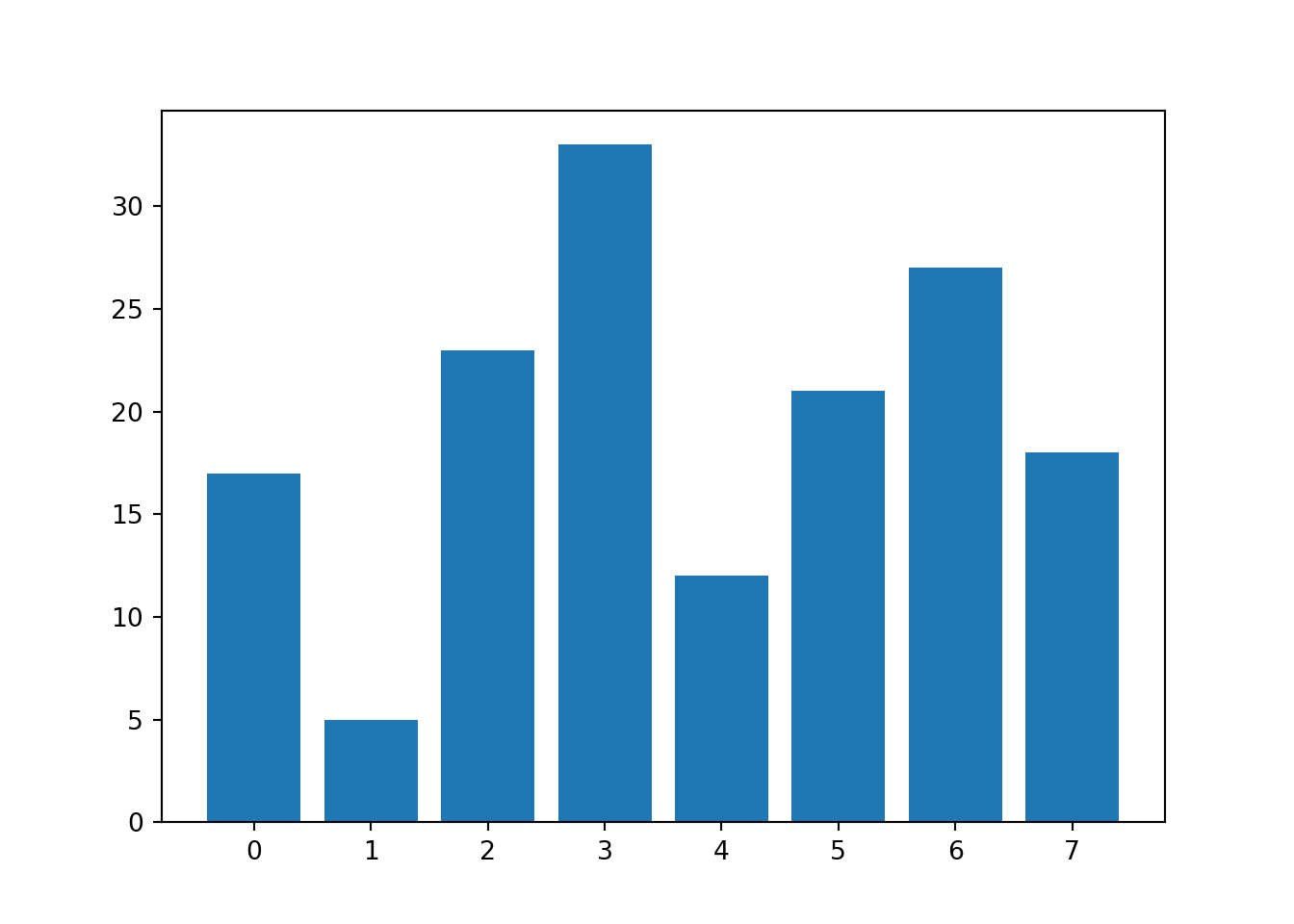

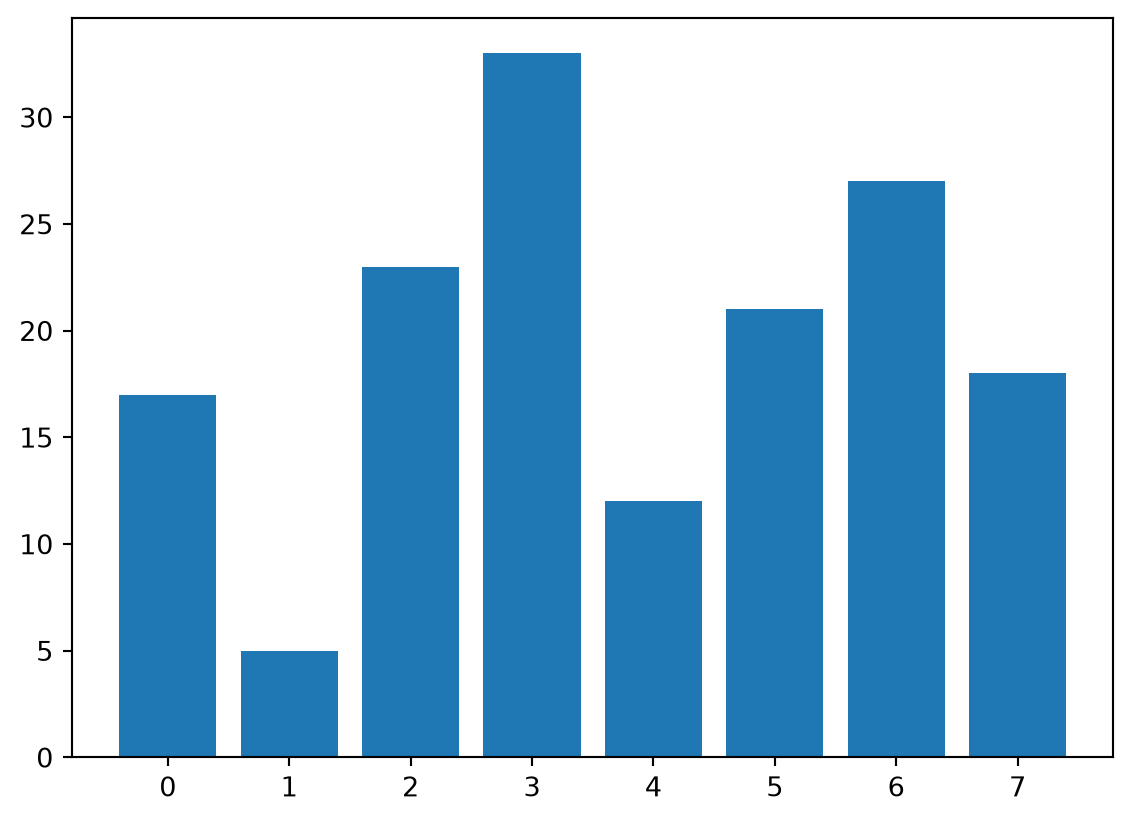

We can then display these values with the bar method:

fig, ax = plt.subplots()
ax.bar(x, y)

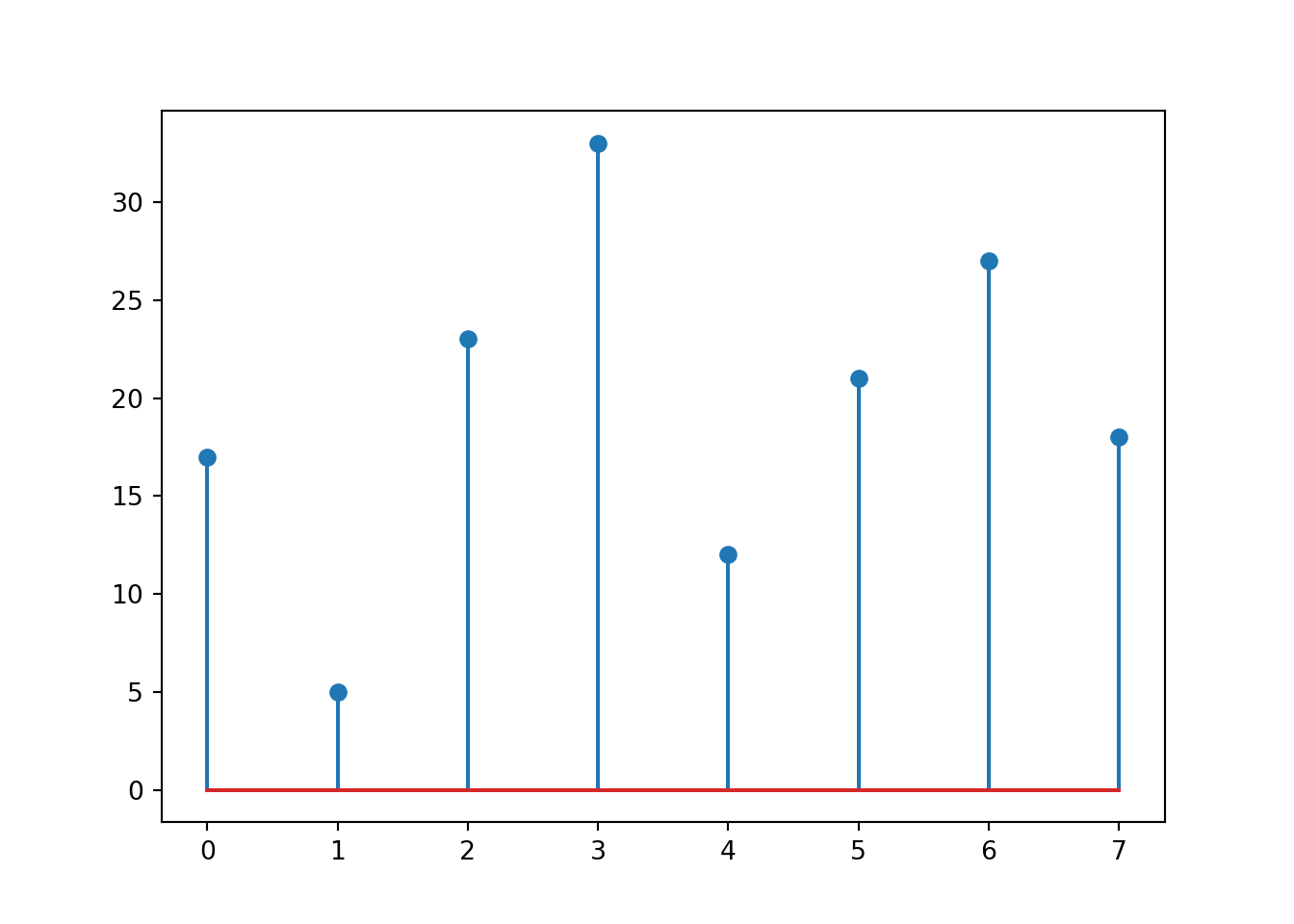

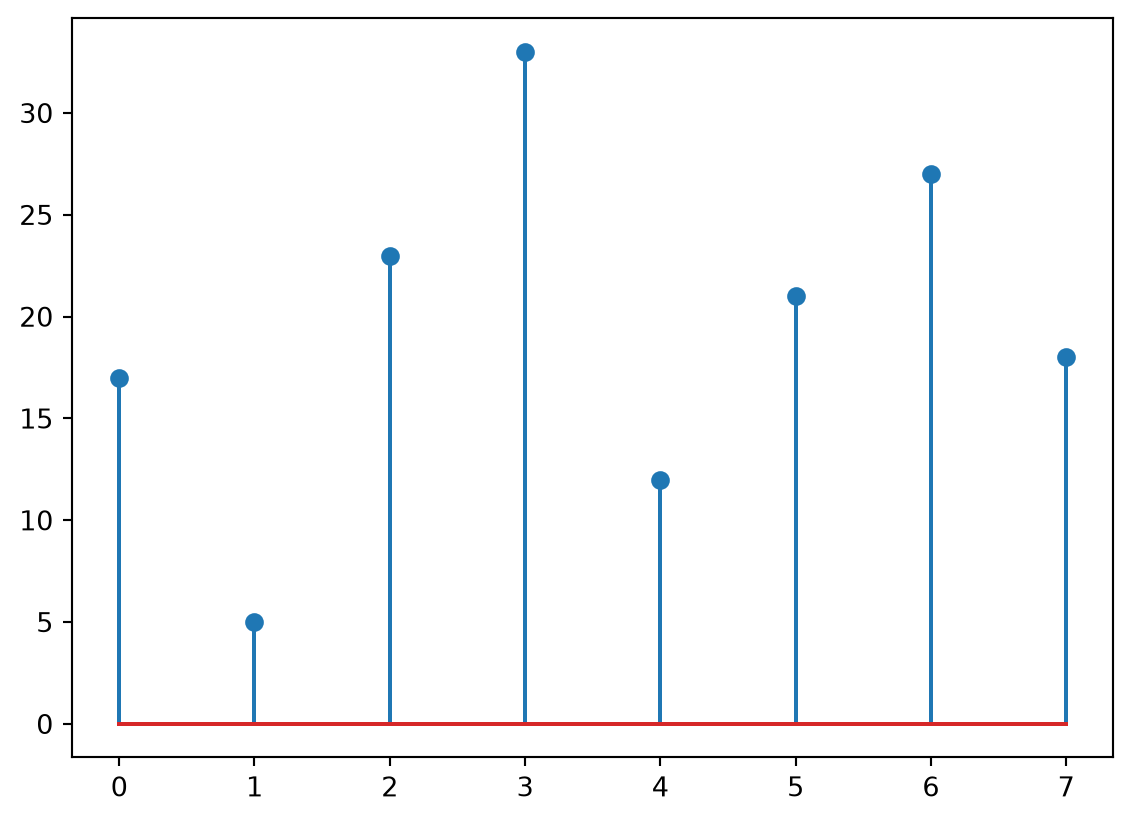

Alternatively, we could also visualize these values as a stem plot:

fig, ax = plt.subplots()
ax.stem(x, y)

Histograms

Matplotlib also supports more complex statistical plots like histograms. To create a histogram, we first generate new example data x (10,000 normally distributed random numbers with a mean of 100 and a standard deviation of 15):

from numpy.random import default_rng

rng = default_rng(1)
x = rng.normal(loc=100, scale=15, size=10000)

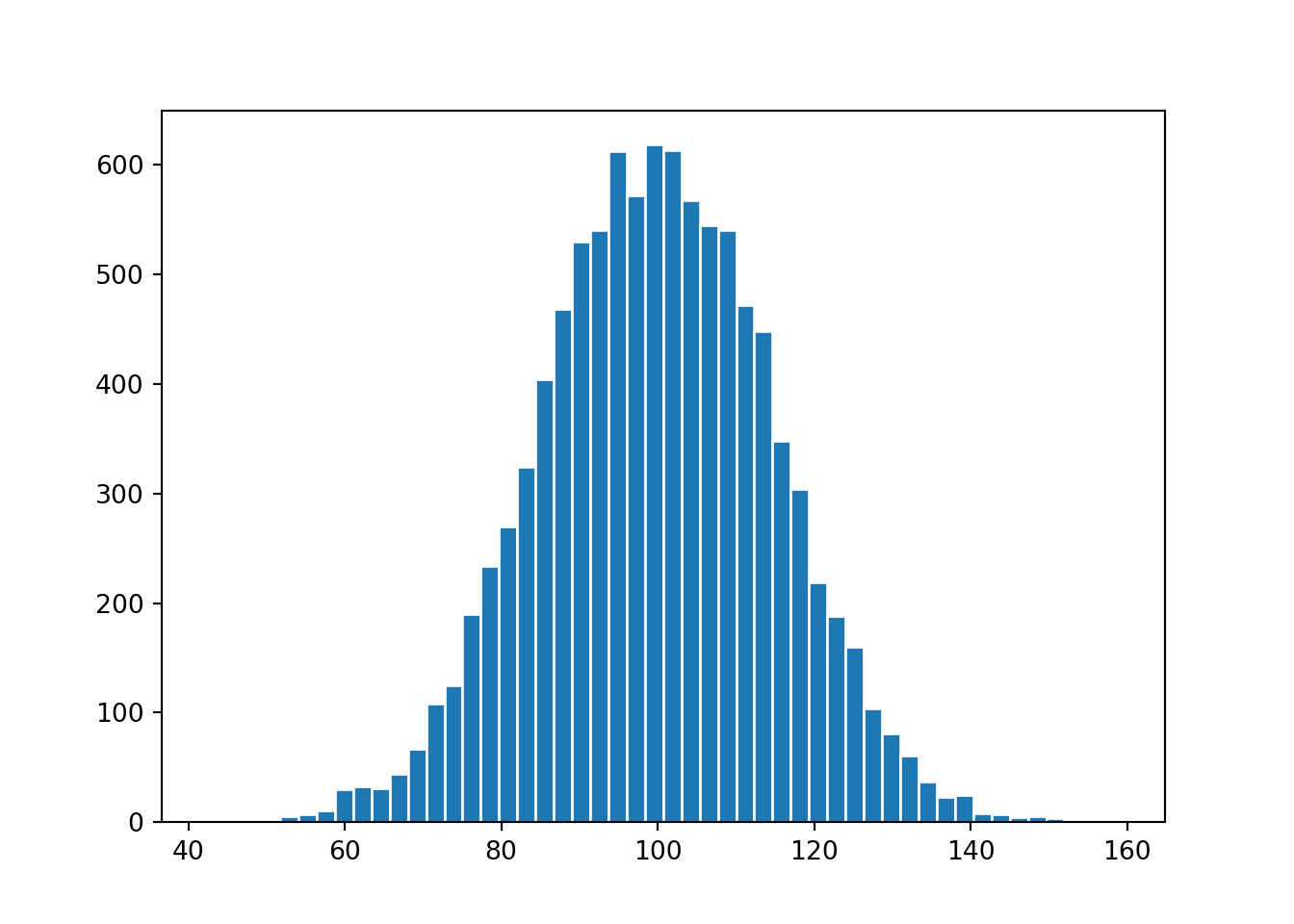

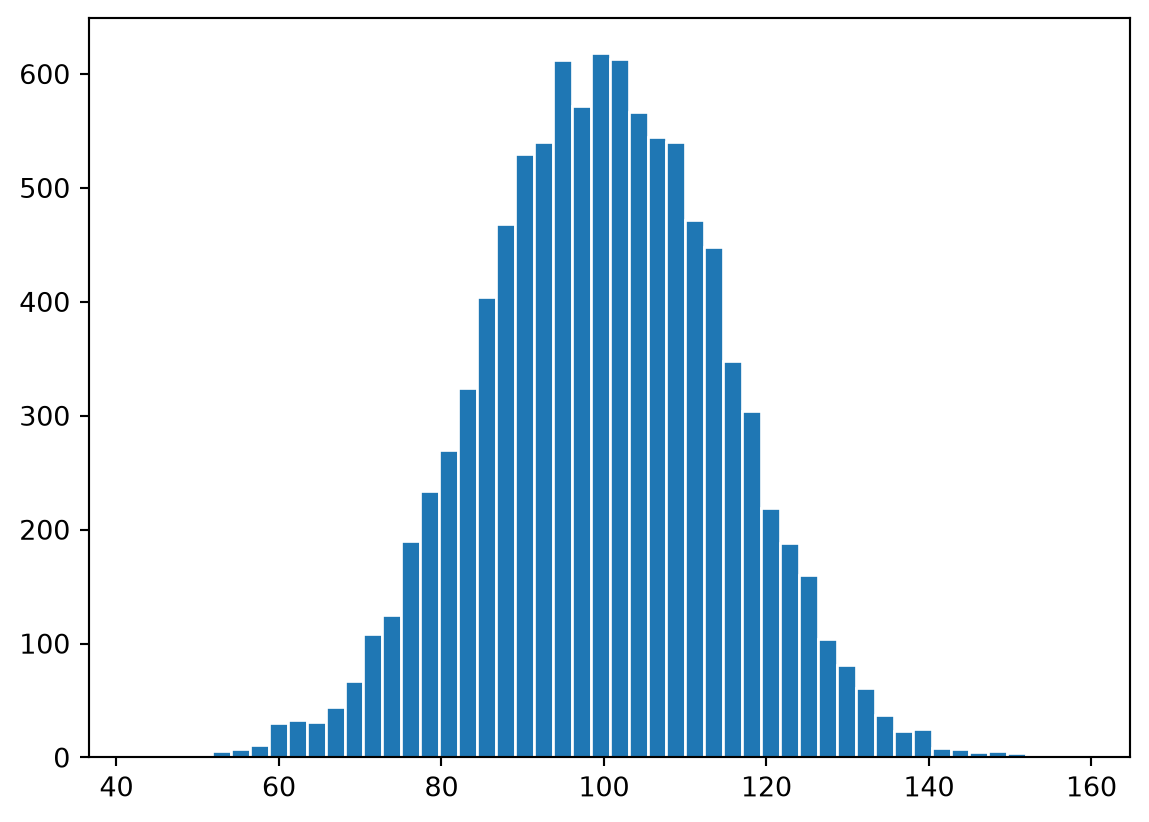

We can now display the distribution of x as a histogram:

fig, ax = plt.subplots()
ax.hist(x, bins=50, edgecolor="white")

In this example, we manually set the number of bins to 50. We also use a white edge color to better separate the individual bars.

Tip

All plotting methods (e.g., plot, scatter, bar, stem) have optional arguments that allow us to customize the appearance of the plot. These are described in the respective documentations.

Boxplots

Boxplots are also used to visualize the distribution of one or more variables. Let’s create the following three example arrays:

x = rng.normal(loc=0, scale=5, size=10000)
y = rng.exponential(5, size=10000)
z = rng.poisson(2.8, size=10000)

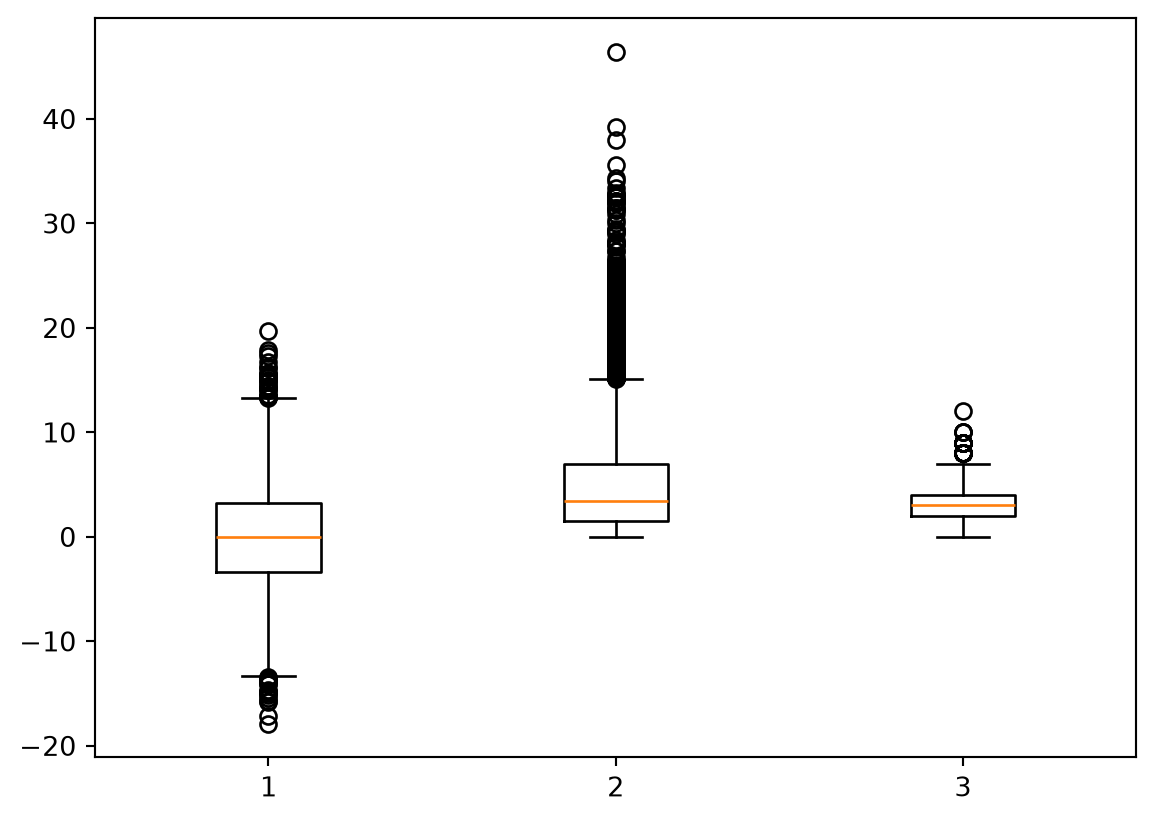

We can visualize the distributions of the three variables with three boxplots:

fig, ax = plt.subplots()
ax.boxplot([x, y, z])

Note

A boxplot displays the distribution of a dataset based on its quartiles. The box spans from the first quartile (Q1) to the third quartile (Q3), so its height (in a vertical boxplot) represents the interquartile range (IQR) – the middle 50% of the data. The horizontal line inside the box marks the median (Q2).

The whiskers extend from the edges of the box to the most extreme data points that are within 1.5 times the IQR from the quartiles:

  • The lower whisker reaches down to the smallest value that is greater than or equal to Q1 − 1.5 × IQR.
  • The upper whisker extends up to the largest value that is less than or equal to Q3 + 1.5 × IQR.

Any data points beyond these limits are shown individually and are considered outliers.

Violin plots

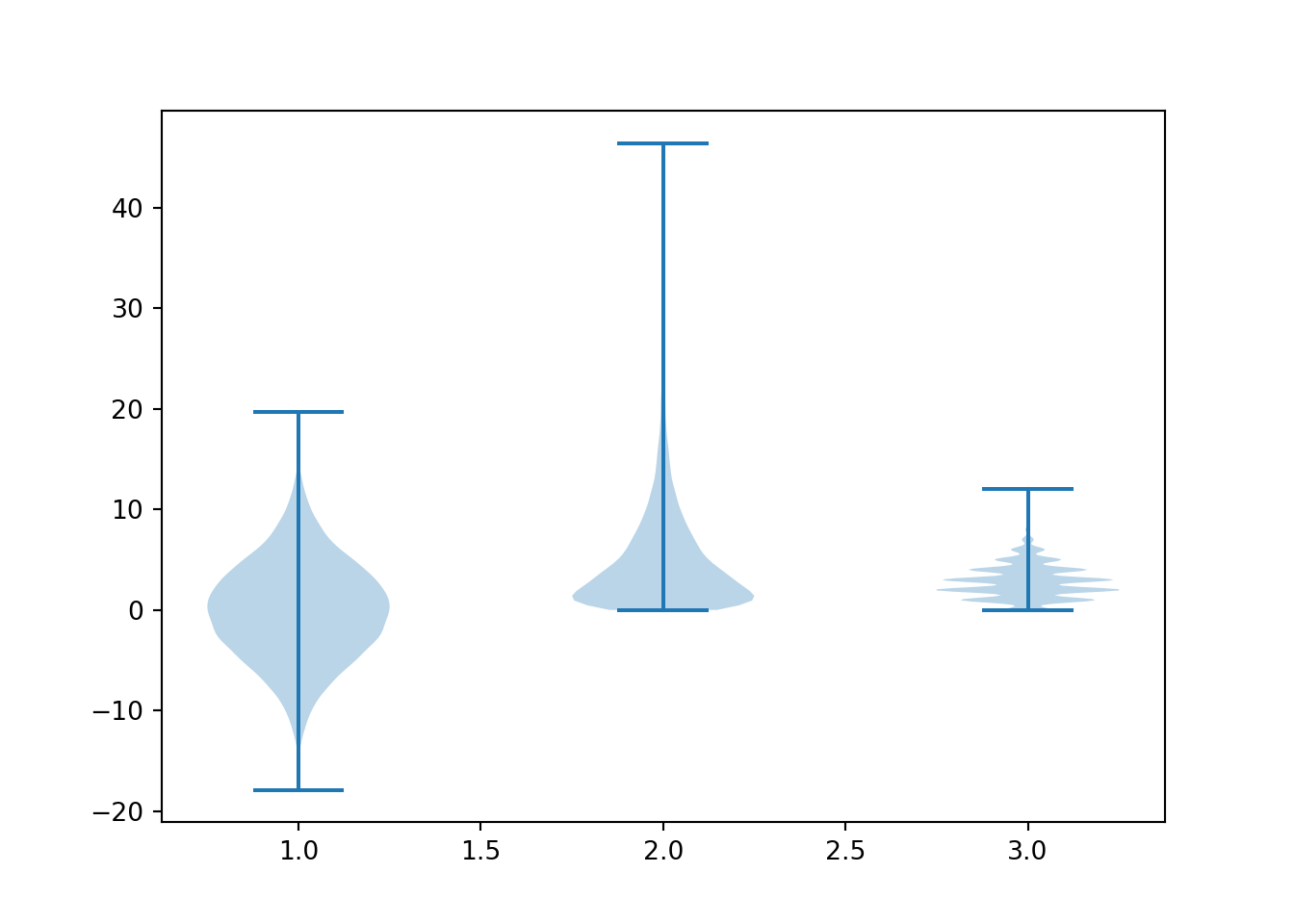

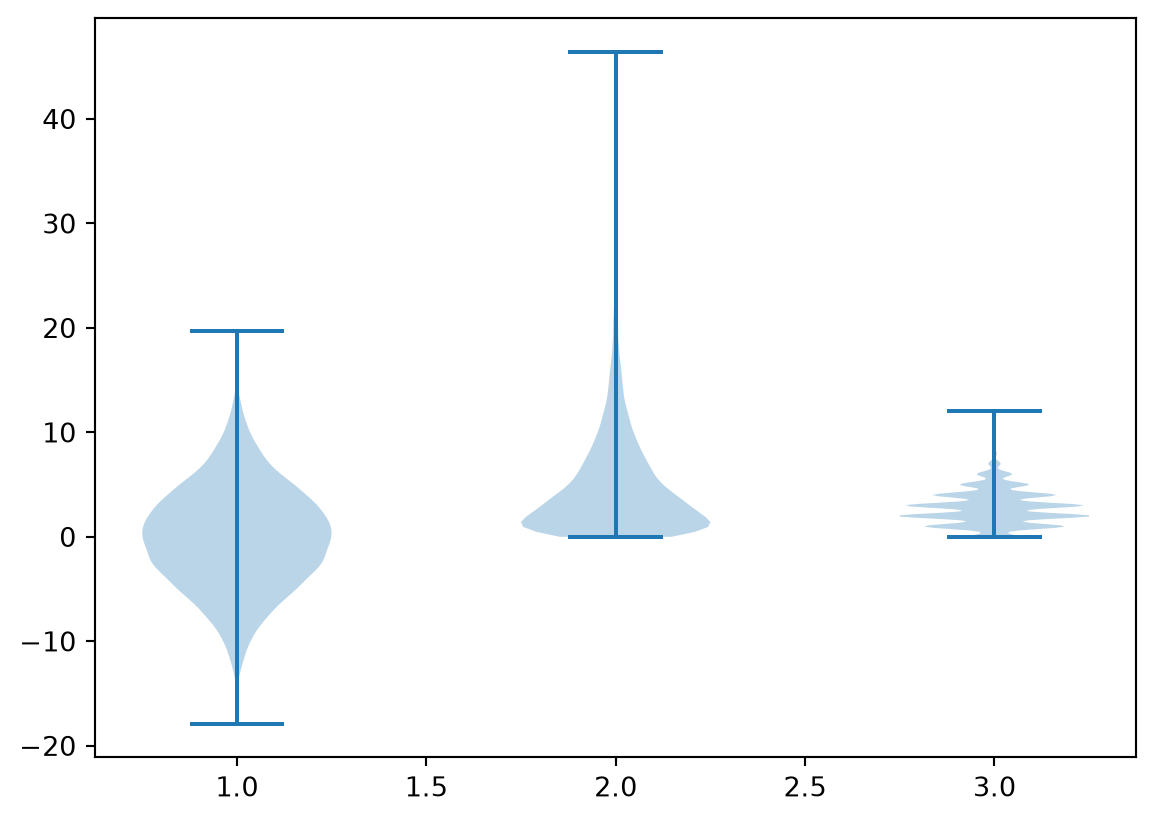

Violin plots can be used as an alternative to boxplots. For example, the data from the previous section could also be visualized like this:

fig, ax = plt.subplots()
ax.violinplot([x, y, z])

Additional plot types

Matplotlib supports many other plot types, such as pie charts, contour plots, and 3D plots. However, if you want to create scatter plots with overlaid regression lines or other more complex statistical plot types, you should take a look at more specialized packages like seaborn. While it is theoretically possible to create these types of plots with Matplotlib, it would require many manual steps (e.g., you would have to fit a linear regression model to the data before including it in a plot). Seaborn automates these steps and provides sensible defaults for many common plot types.

Title and axis labels

By default, Matplotlib does not add titles or axis labels to the plots. However, you can customize an existing plot with specific methods. Let’s take the very first plot we created in this chapter as an example:

x = np.linspace(0, 10, 100)
y = np.sin(x)

fig, ax = plt.subplots()
ax.plot(x, y)

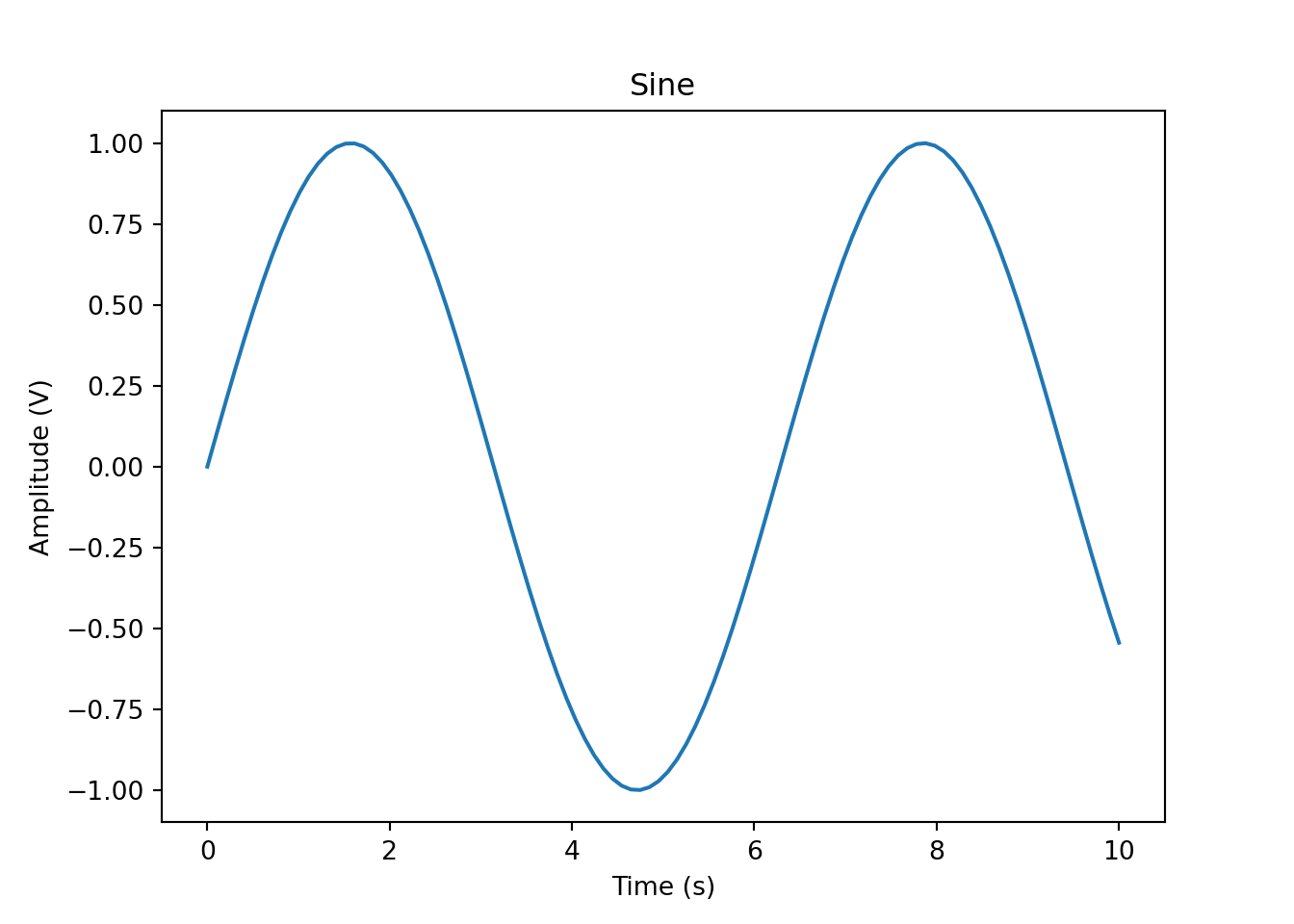

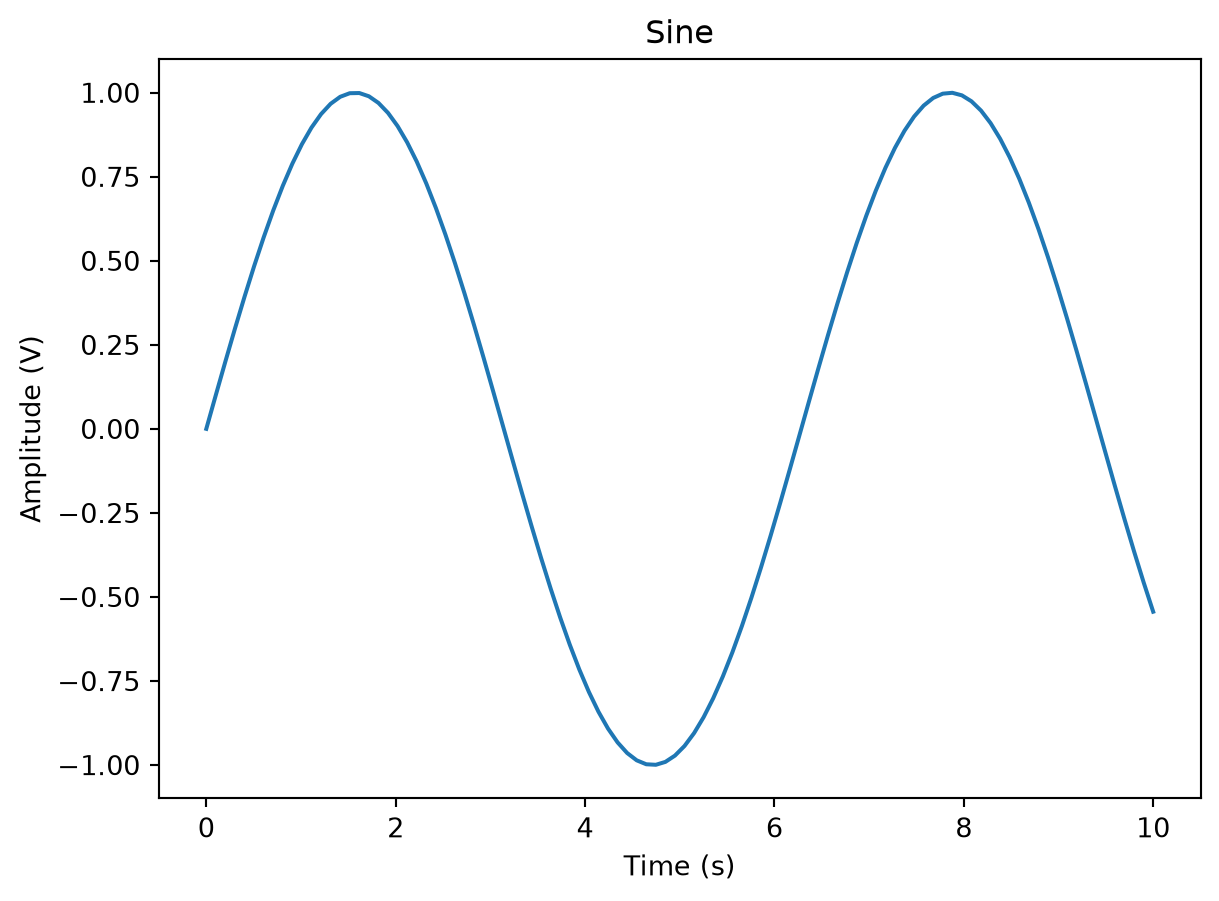

We can add a title and axis labels to this plot as follows:

fig, ax = plt.subplots()
ax.plot(x, y)
ax.set_title("Sine")
ax.set_xlabel("Time (s)")
ax.set_ylabel("Amplitude (V)")

Alternatively, instead of using the three separate methods, you could also use the following shorter version:

fig, ax = plt.subplots()
ax.plot(x, y)
ax.set(title="Sine", xlabel="Time (s)", ylabel="Amplitude (V)")
